    LVS-200W-180*
    其他型号
    LVS-240W-260* LVS-200W-260* LVS-150W-260* LVS-120W-260* LVS-240W-180* LVS-120W-180*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    LVS-200W-180A

    200W

    100-277Vac

    100-180V

    1000-1800mA

    127*60mm

    <10%

    >0.95

    LVS-200W-180B

    100-277Vac

    100-180V

    1000-1800mA

    127*60mm

    <10%

    >0.95

    LVS-200W-180C

    100-277Vac

    100-180V

    1000-1800mA

    127*60mm

    <10%

    >0.95

    A-Adjustable potentiometer version     B-3 in 1 dimming version    C-12V auxiliary power version(no afterglow version optional)

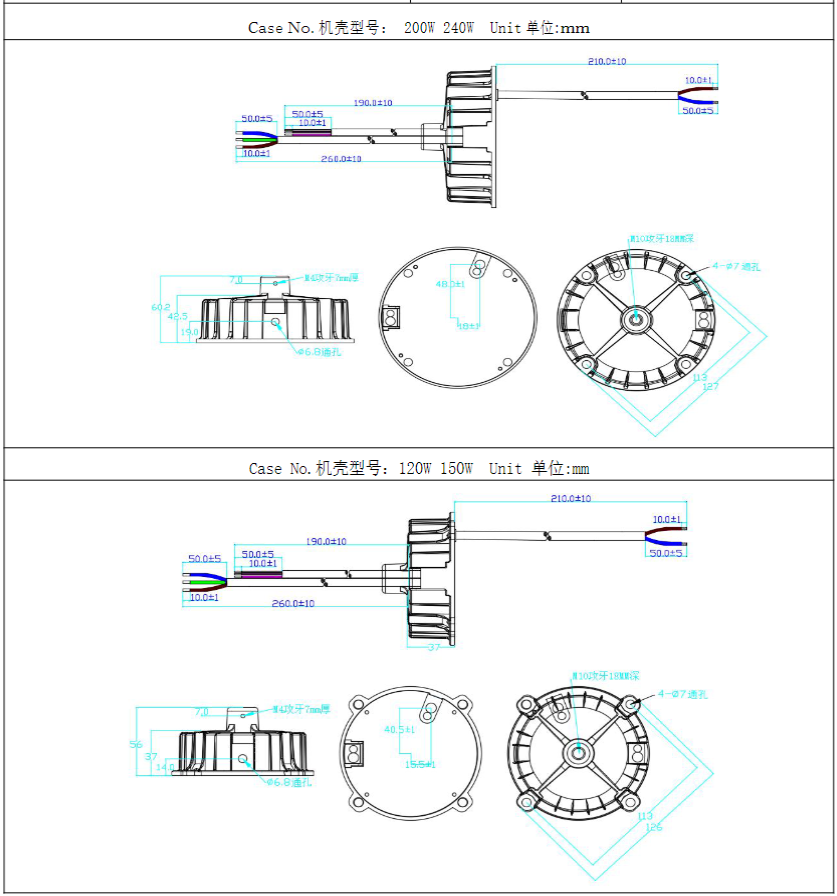

    Unit:mm


    LVS-XXXW-180X SPEC.pdf


  • LCS series
  • LVS
  • LAS
  • LAG

    LVS-200W-180*

    Input voltage: 100-277V

    Output voltage: 100-180V

    Electrical performance parameters: THD<10%/PF>0.95

    Surge protection grade: 6/10KV

    IP grade: IP65

    Protections: Output SCP/OVP/OTP

    Global certifications: ENEC-CE/SAA/CCC/CUL/UL/FCC/CB/CLASS P (C version is compliant with new ERP standard）

    Warranty: 5 years


    Advisory BACK
    Related products： LVS-200W-180* LVS-150W-180* LVS-120W-180* LVS-240W-180* LVS-120W-260*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    LVS-200W-180A

    200W

    100-277Vac

    100-180V

    1000-1800mA

    127*60mm

    <10%

    >0.95

    LVS-200W-180B

    100-277Vac

    100-180V

    1000-1800mA

    127*60mm

    <10%

    >0.95

    LVS-200W-180C

    100-277Vac

    100-180V

    1000-1800mA

    127*60mm

    <10%

    >0.95

    A-Adjustable potentiometer version     B-3 in 1 dimming version    C-12V auxiliary power version(no afterglow version optional)


    Unit:mm


    LVS-XXXW-180X SPEC.pdf
