    SVE-150H-130*
    其他型号
    SVE-240H-130* SVE-200H-130* SVE-150H-130* SVE-100H-130* SVE-60H-130* SVE-240H-56*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

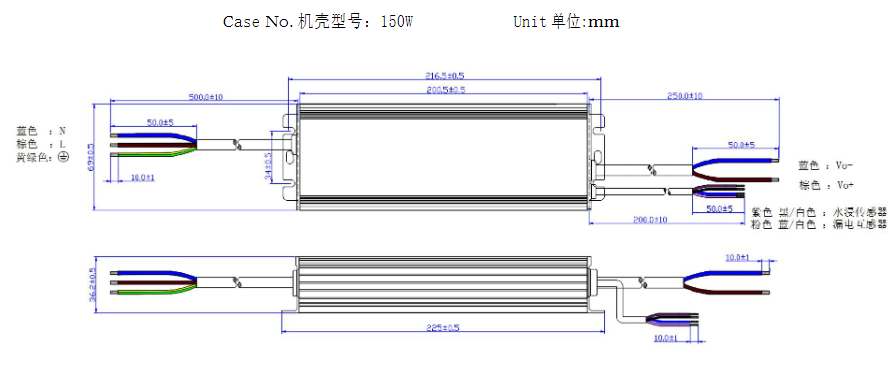

    Dimension

    THD(Typ)

    PF(Typ)

    SVE-150H-130NA

    150W

    220-240V

    80-130V

    1700mA

    225*69*36mm

    <10%

    >0.95

    SVE-150H-130NB

    150W

    220-240V

    80-130V

    1700mA

    225*69*36mm

    <10%

    >0.95

    SVE-150H-130TA

    150W

    220-240V

    80-130V

    1700mA

    225*69*36mm

    <10%

    >0.95

    SVE-150H-130TB

    150W

    220-240V

    80-130V

    1700mA

    225*69*36mm

    <10%

    >0.95

    (Specific size is subject to the real product)

    NA-No antenna, no external water immersion or leakage detection   NB-No antenna, with external water immersion and leakage detection

    TA-With antenna, no external water immersion or leakage detection   TB-With antenna, with external water immersion and leakage detection



  • SVE
  • CAT1 Series
  • PLC Series
  • 4G single lamp/dual lamp controller
  • HPLC single-lamp/dual-lamp controller

    SVE-150H-130*

    Input voltage: 220-240Vac

    Output voltage: 80-130Vdc

    Electrical performance parameters: THD<10%/PF>0.95

    Protections: Input UVP/OVP, output SCP/OVP/OTP/OPP, water immersion and leakage detection

    Surge protection grade: 6/10KV

    IP grade: IP67

    Certifications: CCC

    Warranty: 5 years


    Advisory BACK
    Related products： SVE-100H-56* SVE-60H-56* SVE-150H-56* SVE-200H-56* SVE-240H-56*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    SVE-150H-130NA

    150W

    220-240V

    80-130V

    1700mA

    225*69*36mm

    <10%

    >0.95

    SVE-150H-130NB

    150W

    220-240V

    80-130V

    1700mA

    225*69*36mm

    <10%

    >0.95

    SVE-150H-130TA

    150W

    220-240V

    80-130V

    1700mA

    225*69*36mm

    <10%

    >0.95

    SVE-150H-130TB

    150W

    220-240V

    80-130V

    1700mA

    225*69*36mm

    <10%

    >0.95

    (Specific size is subject to the real product)

    NA-No antenna, no external water immersion or leakage detection   NB-No antenna, with external water immersion and leakage detection

    TA-With antenna, no external water immersion or leakage detection   TB-With antenna, with external water immersion and leakage detection
