    HVC-75W-108*
    其他型号
    HVC-30W-56* HVC-50W-56* HVC-50W-72* HVC-75W-56* HVC-75W-108* HVC-100W-56*
    Model List
    Model Rated power Input voltageOutput voltageOutput currentDimension
    		THD(Typ)PF(Typ)
    HVC-75W-108A75W100-277V54-108V500-1050mA149*61*33mm<10%>0.95
    HVC-75W-108B100-277V54-108V500-1050mA149*61*33mm<10%>0.95

    A-Adjustable potentiometer version  B-3 in 1 dimming version

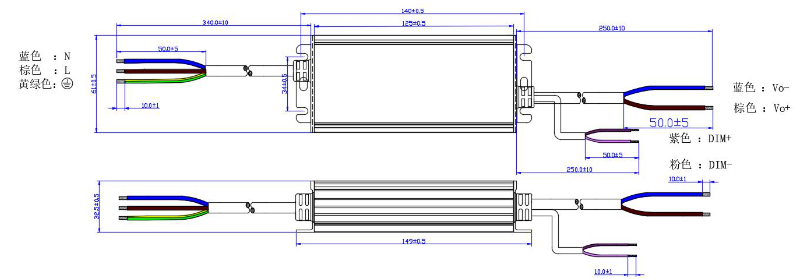

    Unit:mm


  • HVC系列
  • HBC系列
  • HVE系列
  • HAE系列
  • SAP
  • SCP系列
  • GEP

    HVC-75W-108*

    Input voltage: 100-277V

    Output voltage: 54-108

    Performance parameters: THD

    Protection level: 6/10KV

    Protection level: IP67

    Global certifications: CCC/CE/CB

    Protections: Input UVP, output SCP/OVP/OTP

    Warranty: 5 years



    Advisory BACK
    Related products： HVC-30W-56* HVC-50W-56* HVC-50W-72* HVC-75W-56* HVC-75W-108*
    Model List
    Model Rated power Input voltageOutput voltageOutput currentDimension
    		THD(Typ)PF(Typ)
    HVC-75W-108A75W100-277V54-108V500-1050mA149*61*33mm<10%>0.95
    HVC-75W-108B100-277V54-108V500-1050mA149*61*33mm<10%>0.95

    A-Adjustable potentiometer version  B-3 in 1 dimming version

    Unit:mm
