HVC-240W-56*

其他型号

HVC-30W-56* HVC-50W-56* HVC-50W-72* HVC-75W-56* HVC-75W-108* HVC-100W-56*

Model List

Model	Rated power	Input voltage	Output voltage	Output current	Dimension	THD(Typ)	PF(Typ)
HVC-240W-56A	240W	100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95
HVC-240W-56B		100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95
HVC-240W-56C		100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95

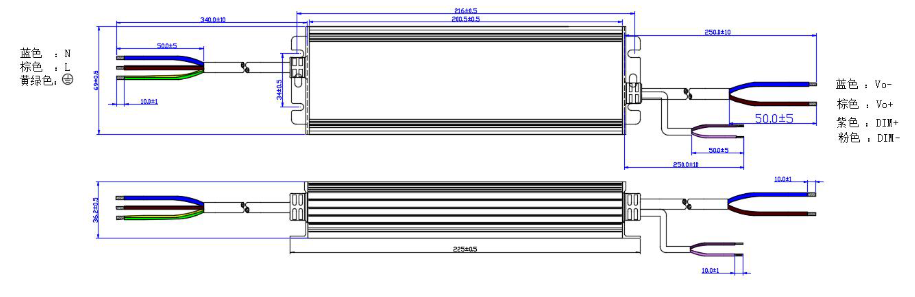

Unit:mm

HVC-240W SPEC V1.0.pdf

HVC系列

HBC系列

HVE系列

HAE系列

SAP

SCP系列

GEP

HVC-240W-56*

Input voltage: 100-277V

Output voltage: 27-56V

Performance parameters: THD<10%/PF>0.95

Surge protection: 6/10KV

IP grade: IP67

Protections: Input UVP, output SCP/OVP/OTP

Global certifications: CCC/CE/CB

Warranty: 5 years

Advisory BACK

Related products： HVC-30W-56* HVC-50W-56* HVC-50W-72* HVC-75W-56* HVC-75W-108*

Model List

Model	Rated power	Input voltage	Output voltage	Output current	Dimension	THD(Typ)	PF(Typ)
HVC-240W-56A	240W	100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95
HVC-240W-56B		100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95
HVC-240W-56C		100-277V	27-56V	3500-6700mA	2256936mm	<10%	>0.95

Unit:mm

HVC-240W SPEC V1.0.pdf
