    HVE-240H-56*
    其他型号
    HVE-30H-38* HVE-30H-56* HVE-50H-38* HVE-50H-56* HVE-50H-72* HVE-75H-38*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    HVE-240H-38A

    240W

    200-277V

    32-56V

    3500-5800mA

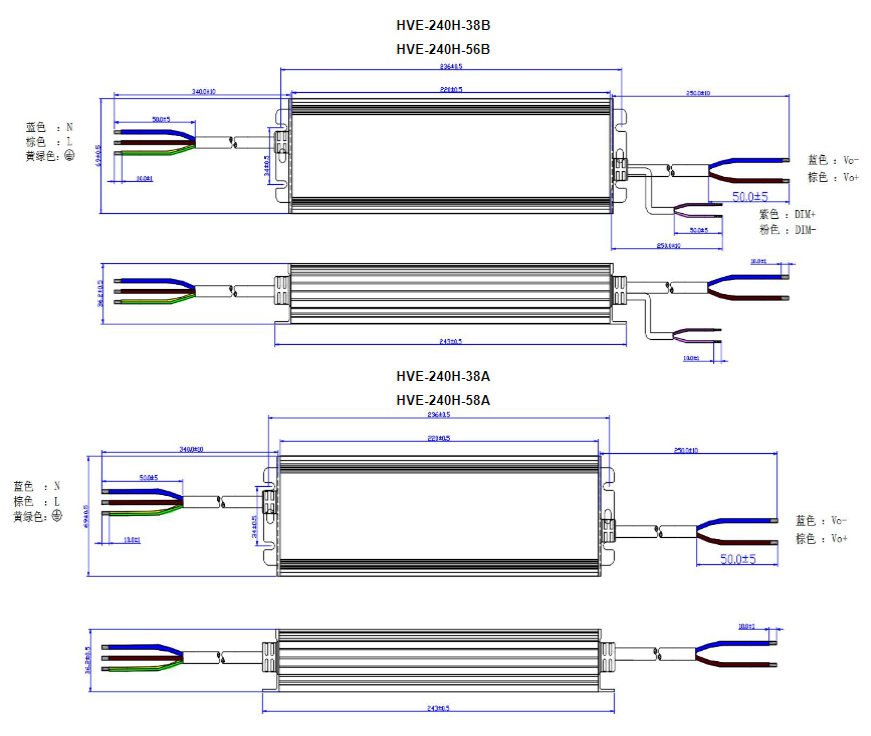

    243*69*34.2mm

    <10%

    >0.95

    HVE-240H-38B

    200-277V

    32-56V

    3500-5800mA

    243*69*34.2mm

    <10%

    >0.95

    A-Adjustable potentiometer version   B-3 in 1 dimming version



    HVE-240H SPEC_V1.0 (EN).pdf


  • HVC系列
  • HBC系列
  • HVE系列
  • HAE系列
  • SAP
  • SCP系列
  • GEP

    HVE-240H-56*

    Input voltage: 200-277V

    Output voltage: 32-56V

    Performance parameters: THD<10%/PF>0.95

    Surge protection: 6/10KV

    IP grade: IP67

    Protections: Input UVP, output SCP/OVP/OTP

    Global certifications: CCC/CE

    Warranty: 5 years


    Advisory BACK
    Related products： HVE-30H-38* HVE-30H-56* HVE-50H-38* HVE-50H-56* HVE-50H-72*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    HVE-240H-38A

    240W

    200-277V

    32-56V

    3500-5800mA

    243*69*34.2mm

    <10%

    >0.95

    HVE-240H-38B

    200-277V

    32-56V

    3500-5800mA

    243*69*34.2mm

    <10%

    >0.95

    A-Adjustable potentiometer version   B-3 in 1 dimming version



    HVE-240H SPEC_V1.0 (EN).pdf
