    SCP-150-56*
    其他型号
    SCP-50-56* SCP-50-90* SCP-100-56* SCP-100-90* SCP-150-56* SCP-150-90*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    SCP-150-56A

    150W

    100-277V

    28-56V

    2400-4500mA

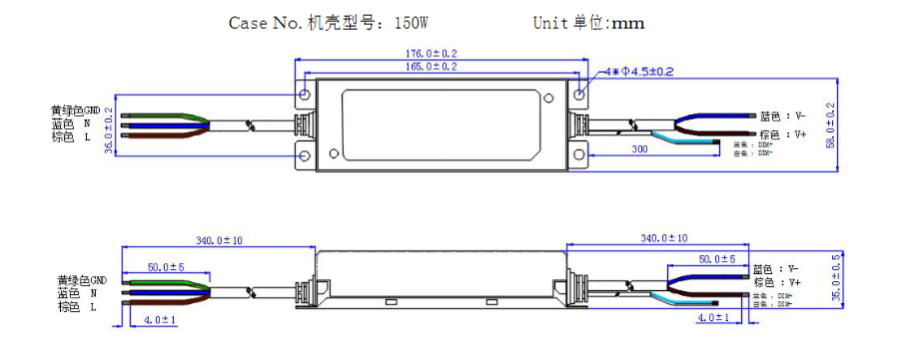

    176*58*36mm

    <15%

    >0.95

    SCP-150-56B

    100-277V

    28-56V

    2400-4500mA

    176*58*36mm

    <15%

    >0.95

    SCP-150-56C

    100-277V

    28-56V

    2400-4500mA

    176*58*36mm

    <15%

    >0.95

     A-Adjustable potentiometer version   B-3 in 1 dimming version   C-12V auxiliary power version


    SCP-150-56X SPEC.pdf


  • HVC系列
  • HBC系列
  • HVE系列
  • HAE系列
  • SAP
  • SCP系列
  • GEP

    SCP-150-56*

    Input voltage: 100-277V

    Output voltage: 28-56V

    Performance parameters: THD<10%/PF>0.95

    Surge protection: 6/10KV

    IP grade: IP65

    Protections: Input UVP, output SCP/OVP/OTP

    Certification: CB (compliant with SASO2927 street lamp standard)

    Warranty: 5 years


    Advisory BACK
    Related products： SCP-50-56* SCP-50-90* SCP-100-56* SCP-100-90* SCP-150-56*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    SCP-150-56A

    150W

    100-277V

    28-56V

    2400-4500mA

    176*58*36mm

    <15%

    >0.95

    SCP-150-56B

    100-277V

    28-56V

    2400-4500mA

    176*58*36mm

    <15%

    >0.95

    SCP-150-56C

    100-277V

    28-56V

    2400-4500mA

    176*58*36mm

    <15%

    >0.95

     A-Adjustable potentiometer version   B-3 in 1 dimming version   C-12V auxiliary power version


    SCP-150-56X SPEC.pdf
