LCS-200W-300*

其他型号

LCS-100W-300* LCS-150W-300* LCS-200W-300* LCS-240W-300*

Model List

Model	Rated Power	Input Voltage	Output Voltage	Output Current	Product Size	THD. (Typ)	PF. (Typ)
LCS-200W-300A	200W	120-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200W-300P		120-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200W-300C		120-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95
LCS-200W-300D		120-277V	180-300V	500-1000mA	φ128*58mm	<10%	>0.95

A-Adjustable potentiometer version

P-Adjustable current + programmed dimming version

C-Adjustable current + programmed dimming + 12V auxiliary power

D-Adjustable current+ DIP swtich for power and CCT

LCS-200W-300X SPEC V1.0（RT）（EN）2025.3.28.pdf

LCS series

LVS

LAS

LAG

LCS-200W-300*

Input voltage: 120-277V

Output voltage: 180-300V

Performance parameters: THD<10%/PF>0.95

Protection level: 4/6kV

IP grade: IP65

Protections: Input UVP, output SCP/OLP/OVP/OTP

Global certifications: ENEC-CE/SAA/CCC/CUL/UL/FCC/CB/CLASS P(C VERSION IS COMPLIANT WITH NEW ERP STANDARD)

Warranty: 5 years

INPUT UVP: WHEN INPUT VOLATE IS 100-120VAC, POWER WILL BE 80%; WHEN INPUT VOLTAGE IS LESS THEN 95VAC, POWER WILL BE 50%. REMARK: WITHSTANDING VOLTAGE FOR LAMP BOARD≥3KV, CREEPAGE DISTANCE≥3.5MM

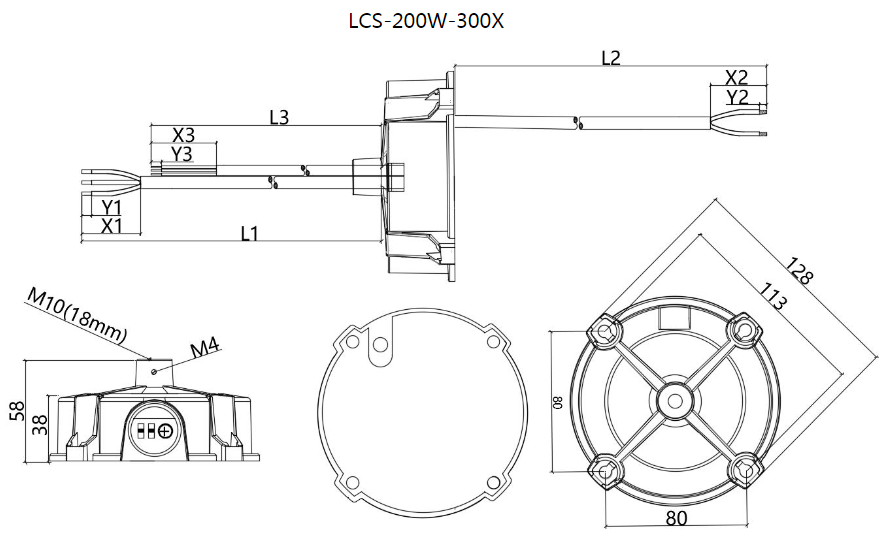

※ NOTE: INSTALLATION HOLE DIAMETER IS 113MM
