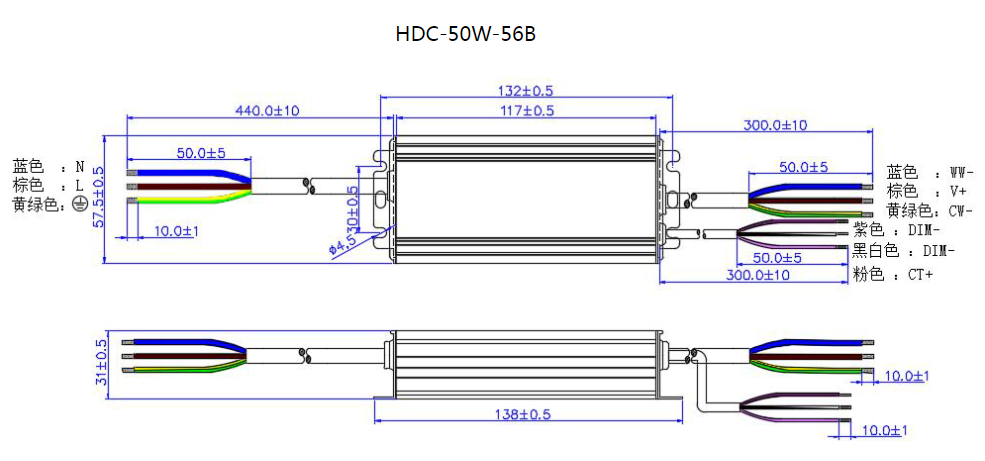

HDC-50W-56B | Model | Rated power | Input voltage | Output voltage | Output current | Dimension | THD(Typ) | PF(Typ) |
| HDC-50W-56B | 50W | 200-277V | 27-56V | 2×450mA | 138*56*32mm | <10% | >0.95 |
Input voltage: 200-277Vac
Output voltage: 27-56Vdc
Electrical performance parameters: THD＜10%/PF＞0.95
Surge protection grade: 4/6KV
IP grade: IP67
Protections: Input UVP, output SCP/OVP/OTP
Features: 0-5V non-polar dimming and color temperature (optional: dimming off, 0-10V non-polar dimming and color temperature, PWM dimming and color adjustment, positive and negative logic dimming)
Certification: CCC
Warranty: 5 years
| Model | Rated power | Input voltage | Output voltage | Output current | Dimension | THD(Typ) | PF(Typ) |
| HDC-50W-56B | 50W | 200-277V | 27-56V | 2×450mA | 138*56*32mm | <10% | >0.95 |
