    HDC-75W-56B
    其他型号
    HDC-50W-56B HDC-75W-56B HDC-100W-56B HDC-150W-56B
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    HDC-75W-56B

    75W

    200-277V

    27-56V

    2×700mA

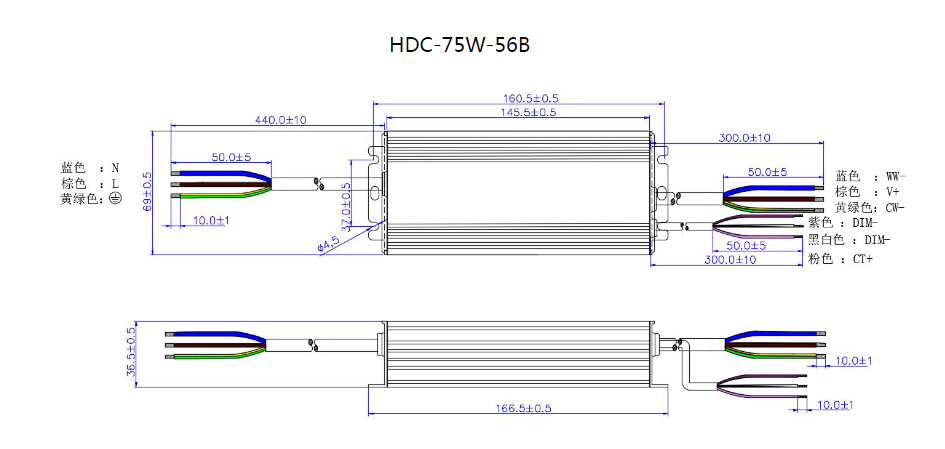

    167*61*32.5mm

    <10%

    >0.95



    HDC-75W-56B_SPEC_V1.0（EN）.pdf


  • HBE Series
  • HBG Series
  • HDC

    HDC-75W-56B

    Input voltage: 200-277V

    Output voltage: 27-56V

    Electrical performance parameters: THD＜10%/PF＞0.95

    Surge protection grade: 6/10KV

    IP grade: IP67

    Protections: Input UVP, output SCP/OVP/OTP

    Features: 0-5V non-polar dimming and color temperature (optional: dimming off, 0-10V non-polar dimming and color temperature, PWM dimming and color adjustment, positive and negative logic dimming)

    Certification: CCC

    Warranty: 5 years


    Advisory BACK
    Related products： HDC-50W-56B HDC-75W-56B HDC-100W-56B HDC-150W-56B
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    HDC-75W-56B

    75W

    200-277V

    27-56V

    2×700mA

    167*61*32.5mm

    <10%

    >0.95



    HDC-75W-56B_SPEC_V1.0（EN）.pdf
