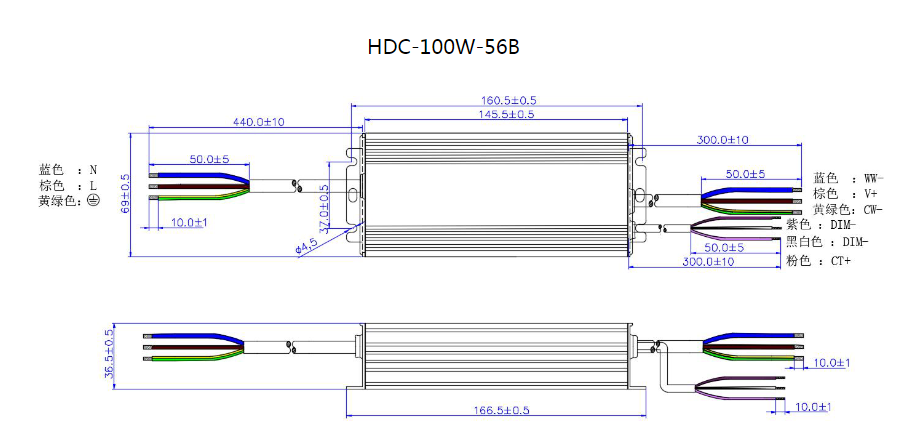

HDC-100W-56B Model | Rated power | Input voltage | Output voltage | Output current | Dimension | THD(Typ) | PF(Typ) |
HDC-100W-56B | 100W | 200-277V | 27-56V | 2×900mA | 168.5*68*37mm | <10% | >0.95 |
Input voltage: 200-277Vac
Output voltage: 27-56Vdc
Electrical performance parameters: THD＜10%/PF＞0.95
Surge protection grade: 6/10KV
IP grade: IP67
Protections: Input UVP, output SCP/OVP/OTP
Features: 0-5V non-polar dimming and color temperature (optional: dimming off, 0-10V non-polar dimming and color temperature, PWM dimming and color adjustment, positive and negative logic dimming)
Certification: CCC
Warranty: 5 years
Model | Rated power | Input voltage | Output voltage | Output current | Dimension | THD(Typ) | PF(Typ) |
HDC-100W-56B | 100W | 200-277V | 27-56V | 2×900mA | 168.5*68*37mm | <10% | >0.95 |
