HVS-75W-150*

其他型号

HVS-320W-260* HVS-240W-260* HVS-200W-260* HVS-150W-260* HVS-120W-260* HVS-100W-260*

Model List

Model	Rated power	Input voltage	Output voltage	Output current	Dimension	THD(Typ)	PF(Typ)
HVS-75W-150A	50W	100-277V	90-150V	150-300mA	1095632mm	<10%	>0.95
HVS-75W-150B	50W	100-277V	90-150V	150-300mA	1095632mm	<10%	>0.95
HVS-75W-150C	50W	100-277V	90-150V	150-300mA	1095632mm	<10%	>0.95
HVS-75W-150XP	50W	100-277V	90-150V	150-300mA	1095632mm	<10%	>0.95

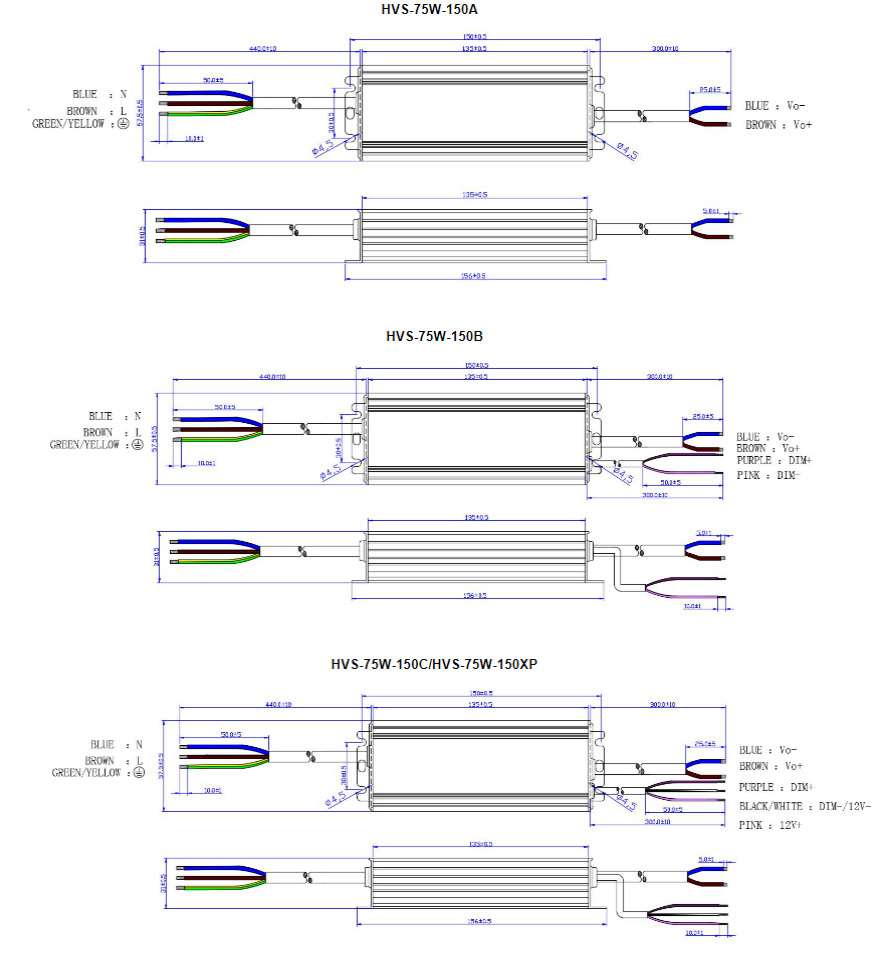

A-Adjustable potentiometer version B-3 in 1 dimming version C-12V auxiliary power version(no afterglow version) XP-12V auxiliary power version (with afterglow version)

HVS-75W-150X SPEC_V1.0_2023.10.24.pdf

HVS series

LBS

LDS系列

HCG series

HNS Series

HVS-75W-150*

Input voltage: 100-277Vac

Output voltage: 90-150Vdc

Electrical performance parameters: THD＜10%/PF＞0.95

Surge protection grade: 6/10KV

IP grade: IP67

Protections: Input UVP, output SCP/OVP/OLP/OTP

Certifications: CCC/CE/CB (C version is compliant with the new ERP standard)

Warranty: 5 years
