    HVC-150W-56*
    其他型号
    HVC-30W-56* HVC-50W-56* HVC-50W-72* HVC-75W-56* HVC-75W-108* HVC-100W-56*
    Model List
    Model
    		Rated power Input voltageOutput voltage
    		Output currentDimensionTHD(Typ)PF(Typ)
    HVC-150W-56A150W100-277V27-56V1800-4500mm190*69*36mm<10%>0.95
    HVC-150W-56B100-277V27-56V1800-4500mm190*69*36mm<10%>0.95
    HVC-150W-56C100-277V27-56V1800-4500mm190*69*36mm<10%>0.95

    A-Adjustable potentiometer version  B-3 in 1 dimming version   C-12V auxiliary power version(no afterglow version optional)

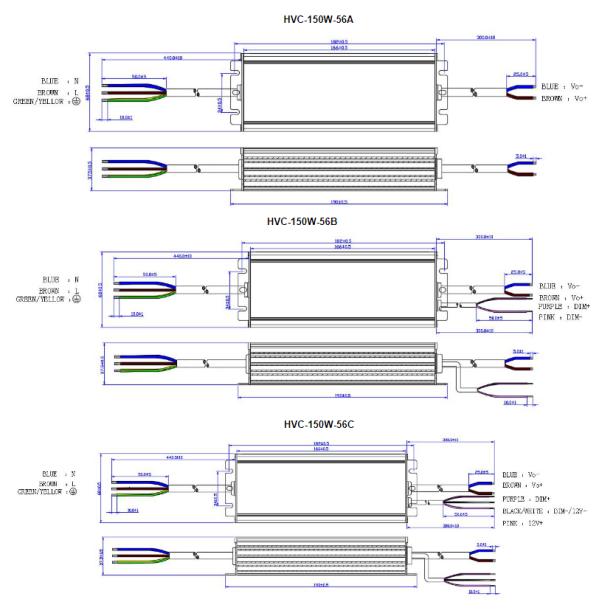

    Unit: mm


    HVC-150W SPEC V1.0.pdf


  • HVC系列
  • HBC系列
  • HVE系列
  • HAE系列
  • SAP
  • SCP系列
  • GEP

    HVC-150W-56*

    Input voltage: 100-277V

    Output voltage: 27-56V

    Performance parameters: THD<10%/PF>0.95

    Surge protection: 6/10KV

    IP grade: IP67

    Protections: Input UVP, output SCP/OVP/OTP

    Global certifications: CCC/CE/CB

    Warranty: 5 years



    Advisory BACK
    Related products： HVC-30W-56* HVC-50W-56* HVC-50W-72* HVC-75W-56* HVC-75W-108*
    Model List
    Model
    		Rated power Input voltageOutput voltage
    		Output currentDimensionTHD(Typ)PF(Typ)
    HVC-150W-56A150W100-277V27-56V1800-4500mm190*69*36mm<10%>0.95
    HVC-150W-56B100-277V27-56V1800-4500mm190*69*36mm<10%>0.95
    HVC-150W-56C100-277V27-56V1800-4500mm190*69*36mm<10%>0.95

    A-Adjustable potentiometer version  B-3 in 1 dimming version   C-12V auxiliary power version(no afterglow version optional)


    Unit: mm


    HVC-150W SPEC V1.0.pdf
