    HVE-50H-38*
    其他型号
    HVE-30H-38* HVE-30H-56* HVE-50H-38* HVE-50H-56* HVE-50H-72* HVE-75H-38*
    Model List
    ModelRated power Input voltageOutput voltageOutput currentDimensionTHD(Typ) PF(Typ)
    HVE-50H-38A50W200-277V20-38V700-1600mA109*61*32.5mm<10%>0.95
    HVE-50H-38B200-277V20-38V700-1600mA109*61*32.5mm<10%>0.95

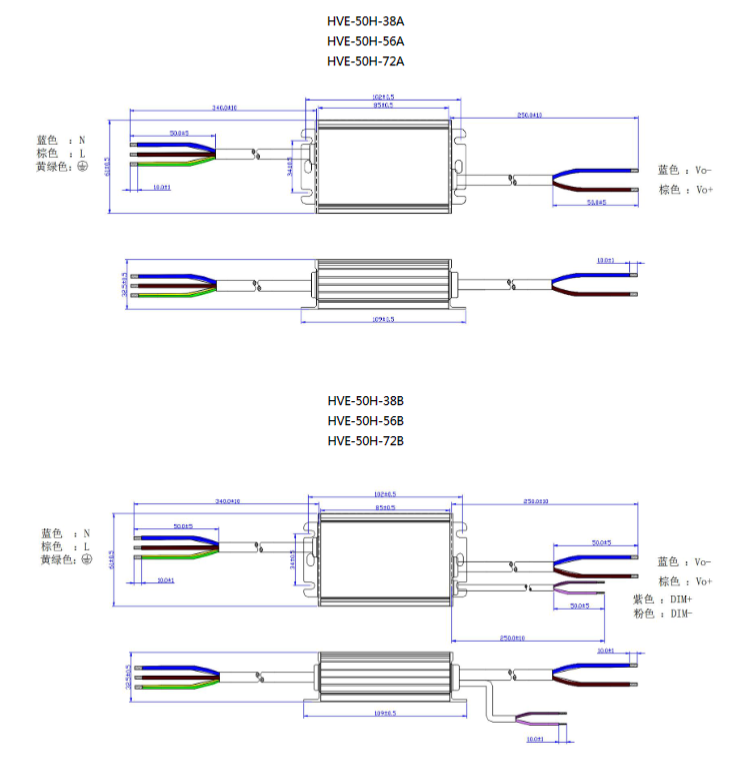

    A-Adjustable potentiometer version  B-3 in 1 dimming version


    HVE-50H SPEC_V2.0（EN）.pdf


  • HVC系列
  • HBC系列
  • HVE系列
  • HAE系列
  • SAP
  • SCP系列
  • GEP

    HVE-50H-38*

    Input voltage: 200-277V

    Output voltage: 20-38V

    Performance parameters: THD<10%/PF>0.95

    Protection level: 4/6KV

    Protection level: IP67

    Protections: Input UVP, output SCP/OVP/OTP

    Global certifications: CCC/CE/CB

    Warranty: 5 years


    Advisory BACK
    Related products： HVE-30H-38* HVE-30H-56* HVE-50H-38* HVE-50H-56* HVE-50H-72*
    Model List
    ModelRated power Input voltageOutput voltageOutput currentDimensionTHD(Typ) PF(Typ)
    HVE-50H-38A50W200-277V20-38V700-1600mA109*61*32.5mm<10%>0.95
    HVE-50H-38B200-277V20-38V700-1600mA109*61*32.5mm<10%>0.95

    A-Adjustable potentiometer version  B-3 in 1 dimming version


    HVE-50H SPEC_V2.0（EN）.pdf
