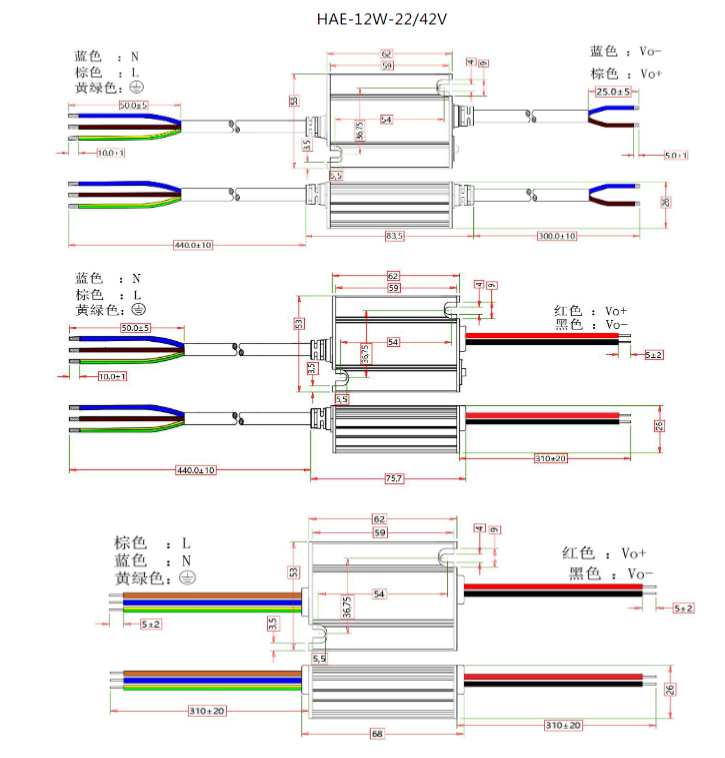

HAE-12W-42V

其他型号

HAE-8W-28V HAE-12W-42V HAE-12W-22V HAE-24W-72V HAE-24W-68V HAE-24W-42V

Model List

Model	Rated power	Input voltage	Output voltage	Output current	Dimension	THD(Typ)	PF(Typ)
HAE-12W-42V	12W	120-277V	21-42V	300mA	625326mm	<10%	>0.95

V-Current not adjustable

SAP

GEP

HAE-12W-42V

Input voltage: 120-277V

Output voltage: 21-42V

Performance parameters: THD<10%/PF>0.95

Surge protection: 2.5/2.5KV

IP grade: IP65

Protections: Input UVP, output SCP/OVP/OLP/OTP

Global certifications: CCC/CE/CB

Warranty: 5 years

※Applications: Small street light, explosion-proof light and others with compact power chamber

Advisory BACK

Related products： HAE-8W-28V HAE-12W-42V HAE-12W-22V HAE-24W-72V HAE-24W-68V

Model List

Model	Rated power	Input voltage	Output voltage	Output current	Dimension	THD(Typ)	PF(Typ)
HAE-12W-42V	12W	120-277V	21-42V	300mA	625326mm	<10%	>0.95

V-Current not adjustable
