HAE-80W-112A

其他型号

HAE-8W-28V HAE-12W-42V HAE-12W-22V HAE-24W-72V HAE-24W-68V HAE-24W-42V

Model List

Model	Rated power	Input voltage	Output voltage	Output current	Dimension	THD(Typ)	PF(Typ)

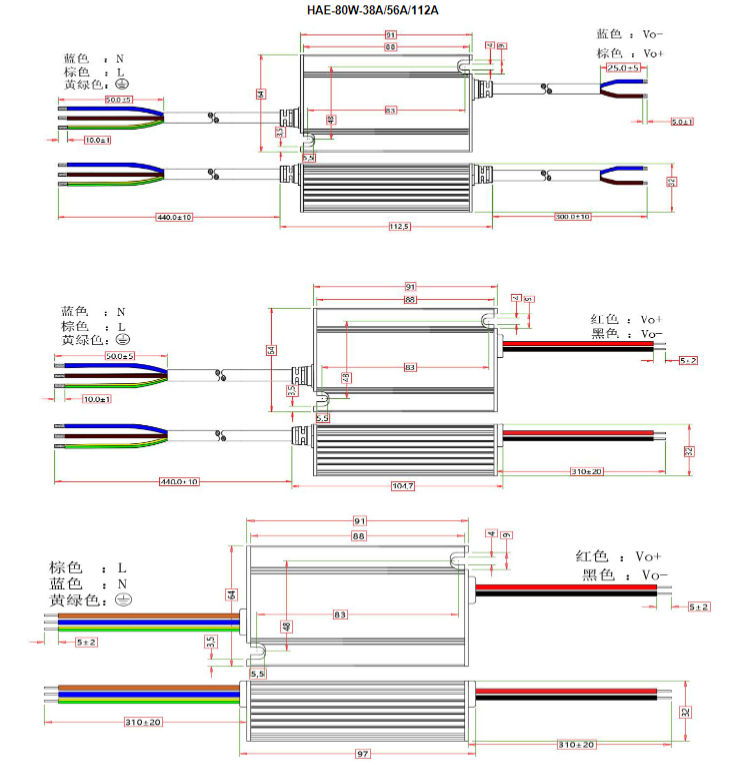

HAE-80W-112A	80W	120-277V	56-112V	500-1050mA	916432mm	<10%	>0.95

A-Adjustable potentiometer version

SAP

GEP

HAE-80W-112A

Input voltage: 120-277V

Output voltage: 56-112V

Performance parameters: THD<10%/PF>0.95

Surge protection: 4/6KV

IP grade: IP65

Protections: Input UVP, output SCP/OVP/OLP/OTP

Global certifications: CCC/CE/CB

Warranty: 5 years

※Applications: Small street light, explosion-proof light and others with compact power chamber
