    HVS-50W-260*
    其他型号
    HVS-320W-260* HVS-240W-260* HVS-200W-260* HVS-150W-260* HVS-120W-260* HVS-100W-260*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    HVS-50W-260A

    50W

    100-277V

    90-150V

    120-250mA

    109*56*32mm

    <10%

    >0.95

    HVS-50W-260B

    50W

    100-277V

    180-260V

    120-250mA

    109*56*32mm

    <10%

    >0.95

    A-Adjustable potentiometer version   B-3 in 1 dimming version

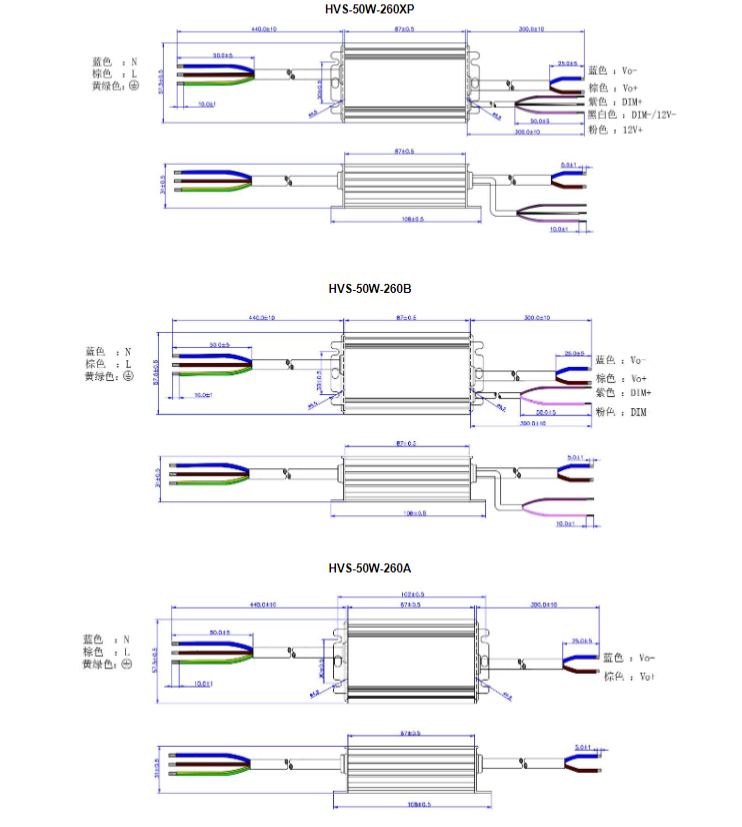

    HVS-50W-260X SPEC_V1.0 SPEC_2023.10.24.pdf


  • HVS series
  • LBS
  • LDS系列
  • HCG series
  • HNS Series

    HVS-50W-260*

    Input voltage: 100-277V

    Output voltage: 180-260V

    Electrical performance parameters: THD＜10%/PF＞0.95

    Surge protection grade: 4/6KV

    IP grade: IP67

    Protections: Input UVP, output SCP/OVP/OLP/OTP

    Certifications: ENEC-CE/CB/CCC (C version is compliant with the new ERP standard)

    Warranty: 5 years


    Advisory BACK
    Related products： HVS-240W-150* HVS-200W-150* HVS-150W-150* HVS-120W-150* HVS-100W-150*
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    THD(Typ)

    PF(Typ)

    HVS-50W-260A

    50W

    100-277V

    90-150V

    120-250mA

    109*56*32mm

    <10%

    >0.95

    HVS-50W-260B

    50W

    100-277V

    180-260V

    120-250mA

    109*56*32mm

    <10%

    >0.95

    A-Adjustable potentiometer version   B-3 in 1 dimming version


    HVS-50W-260X SPEC_V1.0 SPEC_2023.10.24.pdf
