  • GSE-20W500-40
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

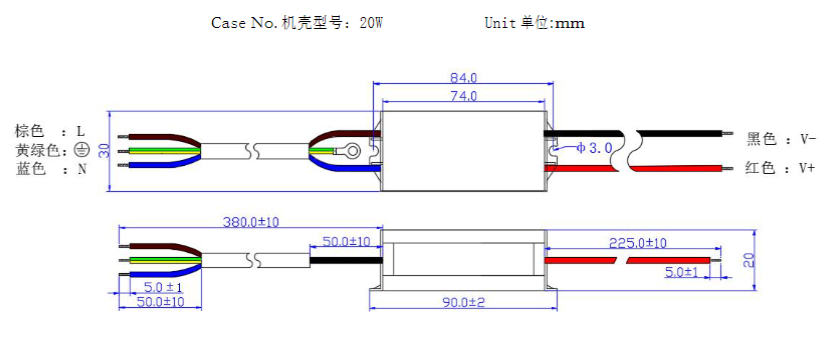

    Dimension

    Surge

    GSE-20W500-40

    20W

    100-265V

    20-40V

    500mA±5%

    90*30*20mm

    2kV



  • GPE
  • GSE
  • GAE series

    GSE-20W500-40

    Application: Built-in lamps such as garden lights, lawn lights, flood lights, three-proof lights, wall washers, etc.

    Input voltage: 100-265V

    Protections: Output OCP /SCP /OTP

    IP grade: IP65

    Warranty: 2 years


    Advisory BACK
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    Surge

    GSE-20W500-40

    20W

    100-265V

    20-40V

    500mA±5%

    90*30*20mm

    2kV
