    GSE-24W600-42
    其他型号
    GSE-30W900-36 GSE-24W600-42 GSE-24W500-45 GSE-24W350-70 GSE-24W300-86 GSE-20W600-35
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    Surge

    GSE-24W600-42

    24W

    100-265V

    21-42V

    600mA±5%

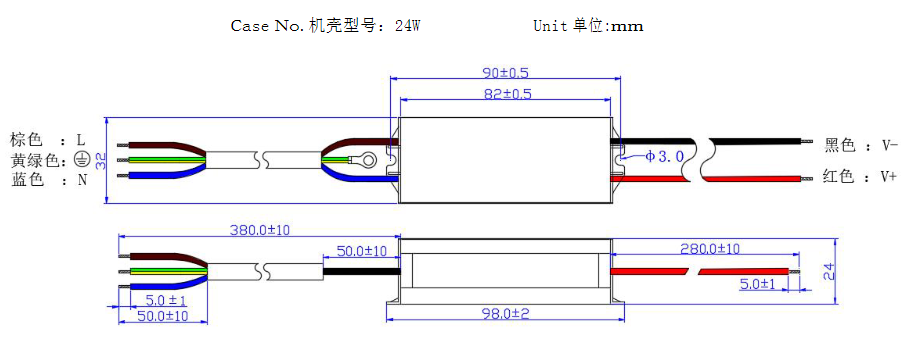

    98*32*24mm

    2kV



  • GPE
  • GSE
  • GAE series

    GSE-24W600-42

    Application: Built-in lamps such as garden lights, lawn lights, flood lights, three-proof lights, wall washers, etc.

    Input voltage: 100-265V

    Protections: Output OCP /SCP /OTP

    IP grade: IP65

    Warranty: 2 years


    Advisory BACK
    Related products： GSE-30W750-45 GSE-24W250-86 GSE-20W450-45 GSE-12W250-45 GSE-8W250-28
    Model List

    Model

    Rated power

    Input voltage

    Output voltage

    Output current

    Dimension

    Surge

    GSE-24W600-42

    24W

    100-265V

    21-42V

    600mA±5%

    98*32*24mm

    2kV
