SAP-240W-38* - Specification parameters and model selection list

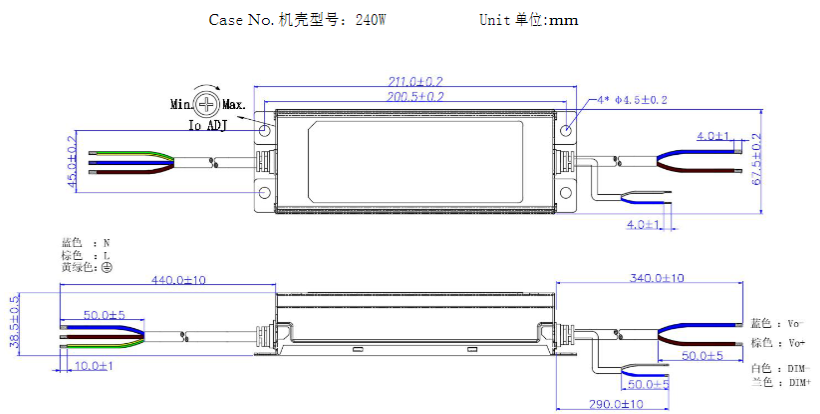

- Structure drawing and bare plate picture
- Specifications and certificates
Input voltage: 100-277V
Output voltage: 20-38V
Performance parameters: THD<10%/PF>0.95
Protection level: 6/10kV
IP grade: IP65
Protections: Input OVP/UVP, output SCP/OTP/OVP/UVP
Global certifications: CCC/CE/CB
Warranty: 5 years
Input UVP: If the input voltage is lower than 90Vac, the power will be reduced by half; if the input voltage is lower than 80Vac, the power will be turned off, and the AC voltage will be restored after it returns to normal.
Input OVP: If the input voltage is higher than 330Vac, the power will be turned off, and the AC voltage will be restored after it returns to normal.
Model List
Model | Rated power | Input voltage | Output voltage | Output current | Size(MM) | THD | PF |
SAP-240W-38A | 240W | 100-277V | 20-38V | 3800-7200mA | 211*67.5*38.5 | ＜10% | ＞0.95 |
SAP-240W-38B | 100-277V | 20-38V | 3800-7200mA | 211*67.5*38.5 | ＜10% | ＞0.95 | |
SAP-240W-38C | 100-277V | 20-38V | 3800-7200mA | 211*67.5*38.5 | ＜10% | ＞0.95 | |
SAP-240W-38P | 100-277V | 20-38V | 3800-7200mA | 211*67.5*38.5 | ＜10% | ＞0.95 |
Version:
A-Adjustable potentiometer version
B-Three-in-one dimming version
C-12V auxiliary power version
P-Off-line programming dimming version
