SAP-200W-38*

其他型号

SAP-240W-343* SAP-200W-286* SAP-150W-214* SAP-100W-143* SAP-240W-56* SAP-200W-56*

Model List

Model	Rated power	Input voltage	Output voltage	Output current	Size	THD	PF
SAP-200W-38A	200W	100-277V	20-38V	3000-6000mA	1866038	＜10%	＞0.95
SAP-200W-38B		100-277V	20-38V	3000-6000mA	1866038	＜10%	＞0.95
SAP-200W-38C		100-277V	20-38V	3000-6000mA	1866038	＜10%	＞0.95
SAP-200W-38P		100-277V	20-38V	3000-6000mA	1866038	＜10%	＞0.95

Version:

A-Adjustable potentiometer version

B-Three-in-one dimming version

C-12V auxiliary power version

P-Off-line programming dimming version

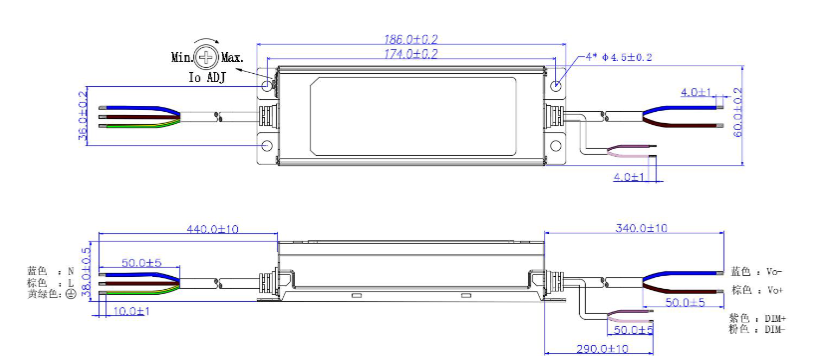

Case No.: 200W Unit: mm

HVC系列

HBC系列

HVE系列

HAE系列

SAP

SCP系列

GEP

SAP-200W-38*

Input voltage: 100-277V

Output voltage: 20-38V

Performance parameters: THD<10%/PF>0.95

Protection level: 6/10kV

IP grade: IP65

Protections: Input OVP/UVP, output SCP/OVP/OTP/UVP

Global certifications: CB

Warranty: 5 years

Advisory BACK

Related products： SAP-100W-38* SAP-150W-38* SAP-200W-38* SAP-240W-38* SAP-100W-56*

Model List

Model	Rated power	Input voltage	Output voltage	Output current	Size	THD	PF
SAP-200W-38A	200W	100-277V	20-38V	3000-6000mA	1866038	＜10%	＞0.95
SAP-200W-38B		100-277V	20-38V	3000-6000mA	1866038	＜10%	＞0.95
SAP-200W-38C		100-277V	20-38V	3000-6000mA	1866038	＜10%	＞0.95
SAP-200W-38P		100-277V	20-38V	3000-6000mA	1866038	＜10%	＞0.95

Version:

A-Adjustable potentiometer version

B-Three-in-one dimming version

C-12V auxiliary power version

P-Off-line programming dimming version

Case No.: 200W Unit: mm
